One of sidemount divings’ many advantages is the streamlined shape you have in the water. Anything that protrudes or dangles is a potential entanglement hazard, and a serious safety issue.

The STEALTH 2.0 design achieves a streamlined system that stays in tune with your anatomy. Whatever position you are in and regardless of how much gas you have in the wing, the distance of the centre of the wing away from the body is minimal.



Diving in caves and wrecks can put your body in some strange and contorted positions, especially in narrow passageways and restrictions. Safety and performance demand you can reach the dump valve with either hand, and dump gas without having to change position.

The STEALTH 2.0 dump valve is located centrally to ensure it can be reached anywhere with either hand. In addition it is placed to offer maximum protection from accidental operation or from being caught or damaged in the environment.



Packing 16Kg of lift into a streamlined and tough double-shell wing required true innovation. Selecting materials that would stand up to the rigours of cave diving meant no compromises. Combining these demands into a sidemount system that was streamlined, infinitely adjustable and made our competitors systems irrelevant was a challenge XDEEP relished.

In the cave environment, especially in tight restrictions, the XDEEP is peerless.



Because the wing has its own independent five-point mounting system, you can place the wing exactly where it needs to be.

During the dive as you mount and demount cylinders, drop stages or clip off scooters the wing can be adjusted to maintain trim. For a real squeeze of a restriction, you can even remove it to completely minimise your profile.



Backup regulators, dive torches, computers, and even a backup plan – cave divers know how to take care of their safety. STEALTH 2.0 Classic RB version adds one more crucial element: a backup source of buoyancy.



In STEALTH 2.0 Classic RB we added fully independent bladder and a full-featured inflator to the regular BCD, so you can safely enjoy the exploration of the underwater cave world of Mexico in your wetsuit.



The expression ‘thinking outside the box’ is often over used, but to revolutionise the sidemount system harness, that’s exactly what we had to do. Analysing the many systems already on the market was a start. We soon realised that something new and groundbreaking, something that would perform brilliantly in the Yucutan Caves as well as open water, was needed.



The STEALTH 2.0 includes some revolutionary features. Using harness webbing of differing thickness and stiffness meant a better more comfortable fit. Building true anatomical structures into the harness enhanced the diving experience. Movable D rings on the waist strap to allow for changes in tank buoyancy and control of tank position were first seen on the STEALTH 2.0 and have been widely copied since.

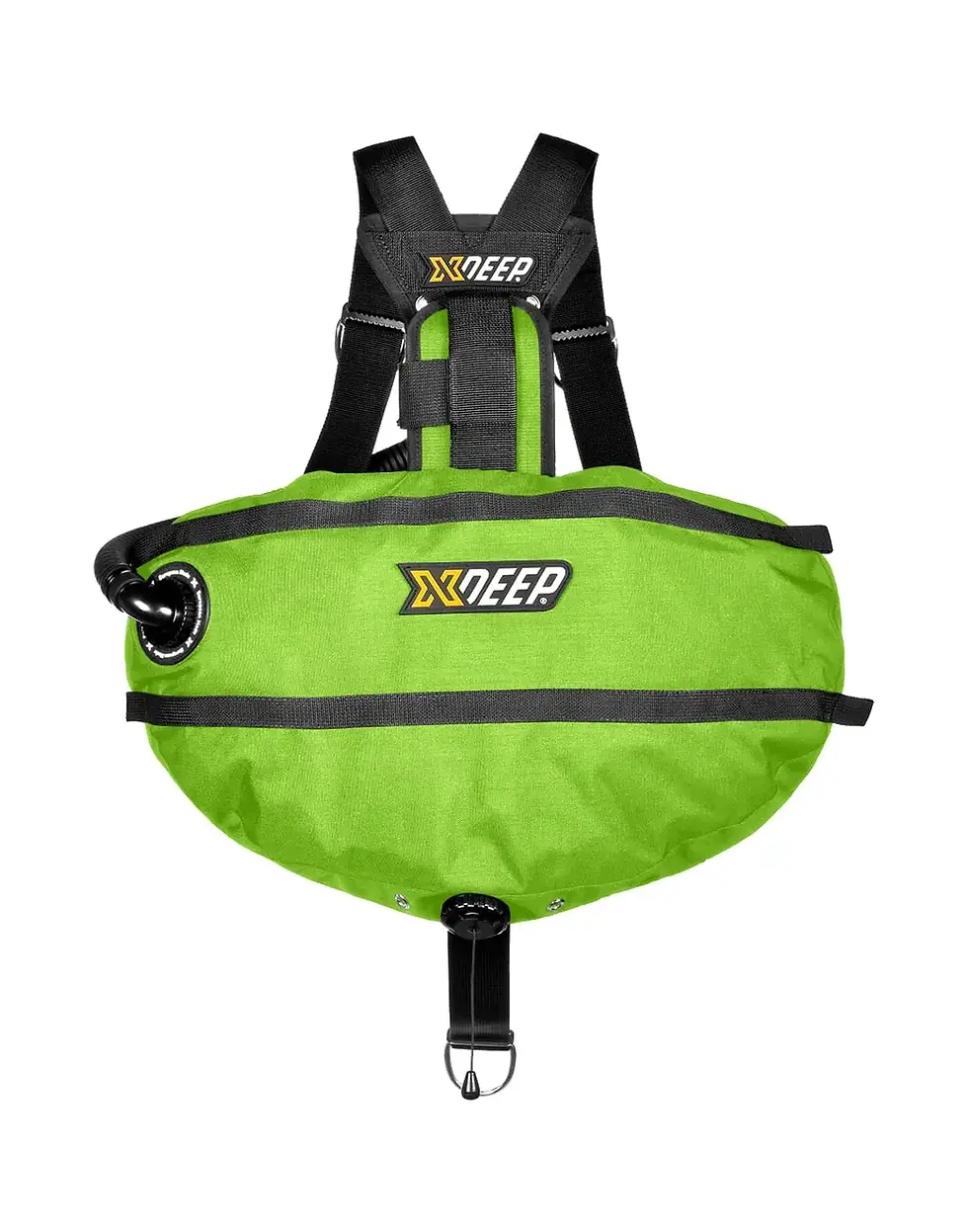

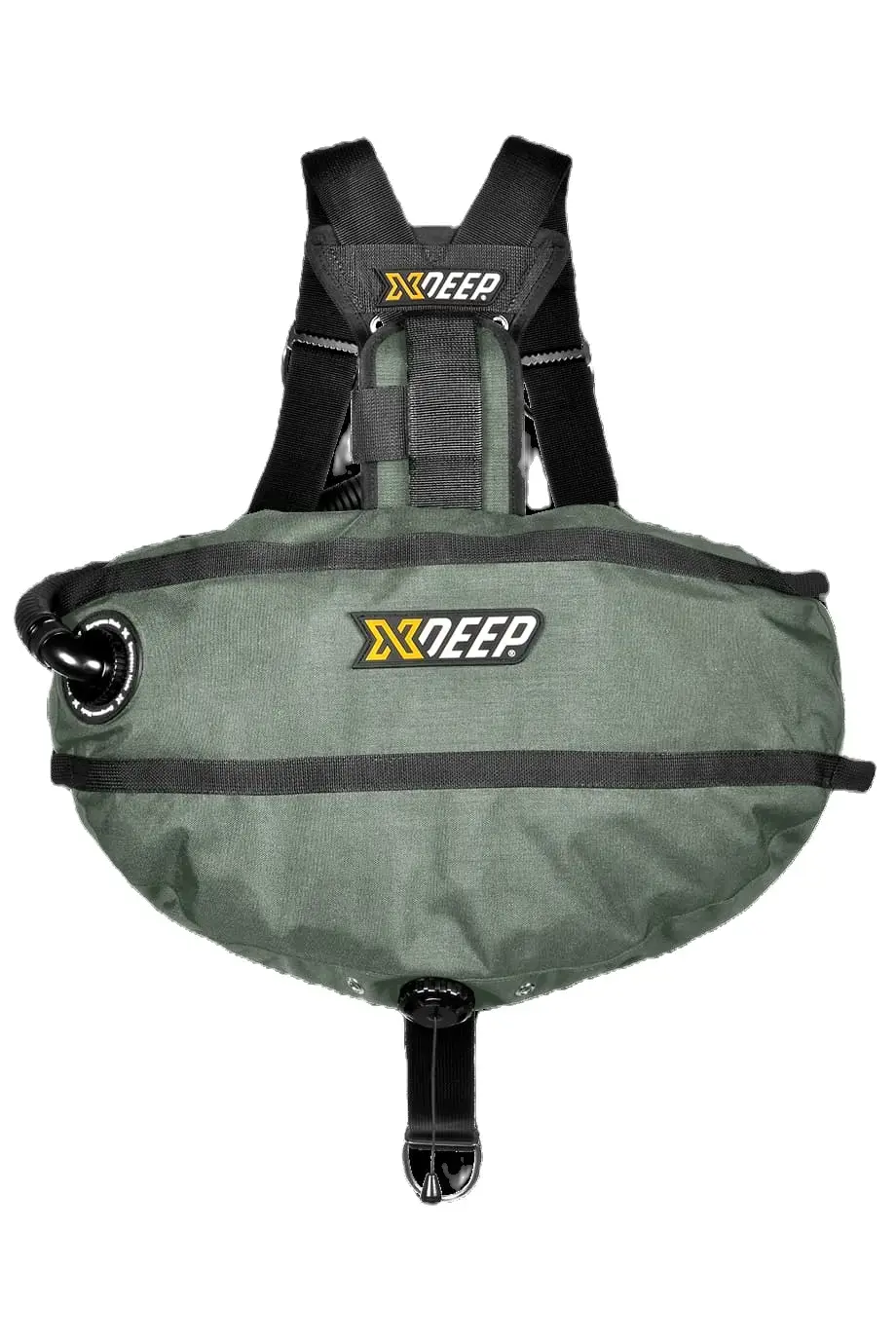

XDeep Classic Sidemount Wing

Colour
  • Perfect for:

    Buoyancy:

    Cave diving, including extreme exploration of very tight caves.

    Buoyancy:

    16 kg 35 lbs
    BCD type: STEALTH 2.0 Classic. Independent from the harness.
    Harness type: STEALTH 2.0 sidemount harness
    Harness sizes available: One universal size with huge adjustment range
    Harness adjustment:

    With the adjustment elements located on the lower node

    of the harness

    Quick release harness: Optional
    Weight system:

    Unique STEALTH 2.0 modular weight system with capacity

    up to 25 kg

    Droppable weight pockets: Optional
    Butt-plate for steel cylinders: Optional

    Total weight of the sidemount

    system (including BC and the

    harness with central

    weight pocket):

    2.4 kg

    5.3 lbs

    stealth 2.0 classic

    SETUP SIDEMOUNT

    PACKAGE CONTAINS:

    - STEALTH 2.0 sidemount harness with the central

    weight pocket installed

    - STEALTH 2.0 Classic buoyancy compensator

    - BC mounting kit

    - Primary light battery mounting kit

    - User’s manual

  • Buoyancy Compensator

    Buoyancy:

    16 kg 35 lbs

    Type:

    Sidemount BCD

    independent from the

    harness. Mounted to

    the diver’s body with

    its own harness.

    Construction: Double shell
    Outer shell fabric: Cordura 1100 dTEX
    Bladder fabric: Nylon 440 dTEX

    Dry BC weight

    (without harness):

    0.8 kg 1.8 lbs





    Permissable Tank Perimiters
    Cylinder type:

    Steel or aluminium in

    sidemount configuration

    Recommended Maximum Number Of Cylinders 4



    Inflator

    Type:

    K-Type
    Supply pressure:

    Between 6 bar and 17.23

    bar (250 PSI)



    Operating Temprature

    Water temperature:

    Between -2°C and 40°C
    Air temperature: Between -20°C and 60°C
